Blood Bag Systems

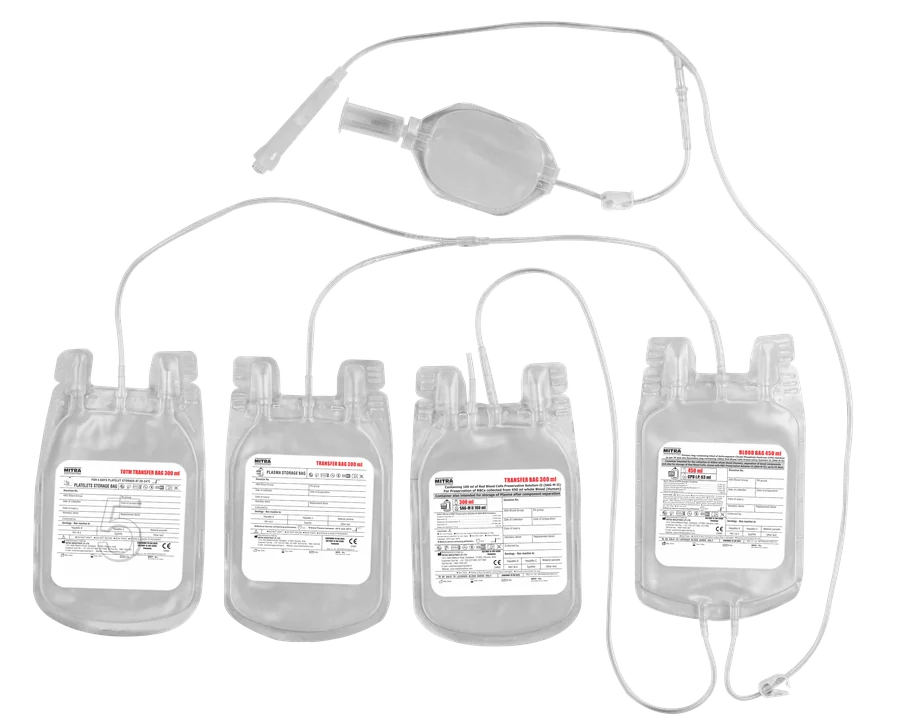

Quadruple SAGM Bag System
Supporting advanced blood component preparation, the Quadruple SAGM Bag System is used for collection, preservation, and transfusion of leukodepleted red blood cells, platelets, and plasma.
The Quadruple SAGM Bag System is used for collection, preservation, and transfusion of leukodepleted red blood cells, platelets, and plasma. It supports blood centres with advanced component preparation requirements.
The system incorporates SAGM additive solution to support red blood cell preservation, helping blood banks prepare and store multiple components from a single whole blood donation.
Key Features
- 01
Four-Bag SAGM Configuration
Uses SAGM additive solution to support preservation of leukodepleted red blood cells, platelets, and plasma.
- 02
Leukodepletion Support
Designed to support leukodepleted red blood cell preparation within blood bank workflows.
- 03
Donor Safety Features
Supported by safety needle shield, needle protection device, ribbed safety hub, winged needle cover, and pre donation sampling pouch.
- 04
Leak Proof Design
Leak proof construction designed to reduce the risk of contamination and air embolism.
- 05
Sterile Fluid Path
A sterile fluid path designed to support blood safety through collection and processing.
- 06
Quality Controlled Manufacturing
Manufactured under established quality systems and controlled production processes.
Clinical Applications
- Whole blood collection
- Preparation of leukodepleted red blood cells
- Component separation of platelets and plasma
- Blood storage and administration
Configuration and Specifications
- System type
- Quadruple blood bag system with RBC & platelet leukodepletion filter
- Anticoagulant
- CPD (Citrate Phosphate Dextrose)
- Additive / preservative
- SAG-M (Saline, Adenine, Glucose, Mannitol)
- Intended use
- Collection, preservation, and transfusion of leukodepleted red blood cells (PRBC), platelets (PLT), and plasma (FFP)
- Fluid path
- Closed system, sterile fluid path
- 350 ml bag
- 49 ml CPD · 78 ml SAG-M
- 450 ml bag
- 63 ml CPD · 100 ml SAG-M
- 500 ml bag
- 70 ml CPD · 111 ml SAG-M
- Needle
- 16 G, ultra-thin-walled, triple-bevel design, rust-proof, with tamper-proof needle cover
- Bag material
- DEHP-plasticized PVC — collapsible, non-vented, sterile; non-pyrogenic, non-toxic, non-hemolytic, bio-compatible
- Tubing
- Flexible, non-sticking, transparent, leak-proof, with printed ID/segment numbers
- Sample slit
- Accommodates a 5–10 ml test tube
- Shelf life
- 3 years from date of manufacture
- PRBC (plain)
- Up to 35 days
- PRBC (SAG-M)
- Up to 42 days
- Platelets (TOTM bag)
- 5 days
- Plasma (FFP)
- Up to 1 year
- Cryoprecipitate
- Up to 1 year
- Granulocyte concentrates
- Up to 1 day
- Compliance
- Meets ISO 3826
Downloads
- Quadruple Blood Bag Catalogue
- Double SAGM Bag Catalogue
- Product Specifications
- Technical Documentation
- Certifications
Speak with a Product Specialist
Connect with our team to discuss product applications and blood management requirements.
